SMD3528 CCT tunable led strip light 36pcs per foot
$7.00 Add to cart

SMD3528 CCT tunable led strip light 36pcs per foot

$7.00

Physical Dimensions & Specifications

  NON-WATERPROOF WATER RESISTANT WATERPROOF
Part # LDT-FV35J30A24120CCT-IP20 LDT-FV35J30A24120CCT-IP65 LDT-FV35J30A24120CCT-IP 68
Dimensions 3/8″ (10mm) wide
1/16″ (2mm) thick
16.4′ (5M) long
3/8″ (10mm) wide
1/8″ (3mm) thick
16.4′ (5M) long
1/2″ (12.7mm) wide
3/16″ (4mm) thick
16.4′ (5M) long
Cut Length 24VDC: 0.98″ (25mm) 24VDC: 0.98″ (25mm) 24VDC: 0.98″ (25mm)
IP Rating IP20 Indoor Use
Dry Location
IP65 Splash Resistant IP68 Submersible
Adhesive Backing Yes / 3M Adhesive Yes / 3M Adhesive No
Mounting Method Adhesive Backing Adhesive Backing Mounting Straps or Adhesive Caulk
Input Voltage 24VDC 24VDC 24VDC
Beam Angle 120 Degrees 120 Degrees 120 Degrees
Dimmable Yes Yes Yes
Max Power Consumption 8.73Watts per foot
(28.8Watts per meter)
8.73Watts per foot
(28.8Watts per meter)
8.73Watts per foot
(28.8Watts per meter)
LED Type SMD 3528 LED Chips SMD 3528 LED Chips SMD 3528 LED Chips
LED Color 3000-6500K 3000-6500K 3000-6500K
LED Quantity 36 LEDs per foot
(600 per reel)
36 LEDs per foot
(600 per reel)
36 LEDs per foot
(600 per reel)
Max Run 16.4 feet @ 24VDC 16.4 feet @ 24VDC 16.4 feet @ 24VDC
Estimated Lifespan 50,000 hours 50,000 hours 50,000 hours
Warranty 3Year 3 Year 3 Year
Suitable Uses Dry Location Only Dry or Damp Locations Dry, Damp or Wet Locations
Safe for use in pools, ponds,
fountains and water features.

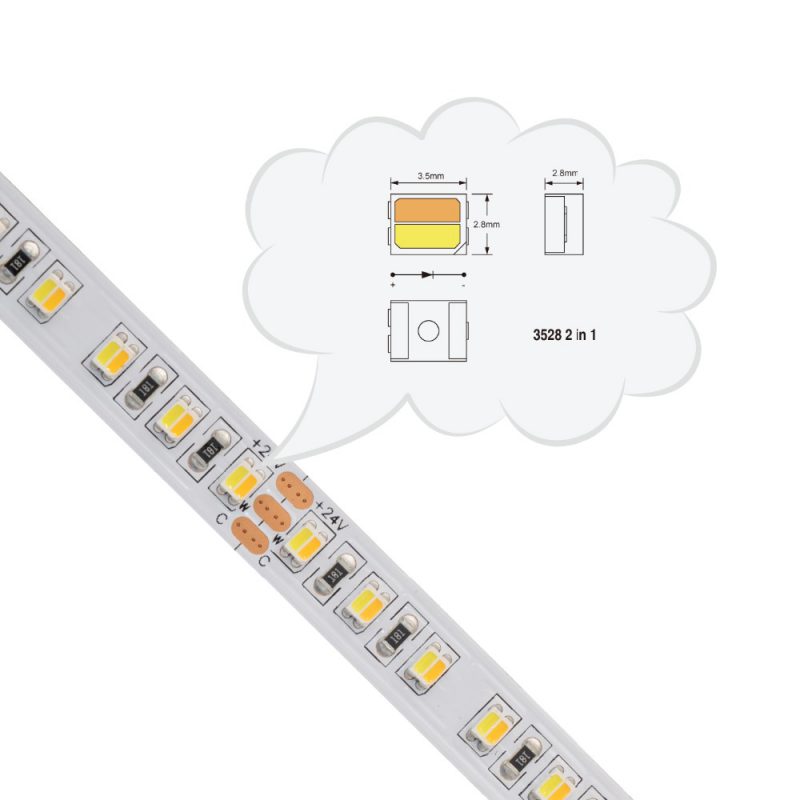

CCT tunable LED Strip lights features a new and innovative way to create any color tone from a vivid and comfortable warm white to a crystal clear pure white. This state of the art Dynamic White LED Strip is the perfect solution where color temperature must be adjusted on a continuous basis. This is done by using 2 different LED Chips in one package.



For example the 96W Dynamic White LED strip Light has 600 LEDs. 300 units are warm white and 300 units are Pure White. The LED Chips are placed in an interlacing fashion; Warm White-Cold White-Warm White and so forth. By using a 2 circuit Flexible Printed Circuit, individual control can be achieved for both types of Chips. By increasing and decreasing the light output of each color, we are able to create any type of white or Dynamic White. This is very useful when lighting up different scenarios that require the light to have a different consistency for each use.



Examples:

In a museum display case or in the jewelry business, depending on what types of items are being displayed, some items will show their natural colors better in Daylight white rather that warm white. Therefore the Light color tone can be adjusted precisely every time a new show is presented. It can be easily cut with plain scissors and it includes 3M Premium grade double sided tape for easy installation on any surface.

Dynamic White LED Strips Lights are perfect for:



Retail Display cases

Jewelry Displays

Hospitality lighting

Museum and event display lighting

Cove Lighting
