Physical Dimensions & Specifications
| NON-WATERPROOF | WATER RESISTANT | WATERPROOF | |
| Part # | LDT-FS28F30A12060-IP20 | N/A | N/A |
| Dimensions | 5/16″ (8mm) wide 1/16″ (2mm) thick 16.4′ (5M) long |
||
| Cut Length | 12VDC: 3.93″ (100mm) | ||
| IP Rating | IP20 Indoor Use Dry Location |
||
| Adhesive Backing | Yes / 3M Adhesive | ||
| Mounting Method | Adhesive Backing | ||
| Input Voltage | 12VDC | ||
| Beam Angle | 120 Degrees | ||
| Dimmable | Yes | ||
| Max Power Consumption | 4.36Watts per foot (14.4Watts per meter) |
||
| LED Type | SMD 2835 LED Chips | ||
| LED Color | 3000K
4000K 6000K |
||
| LED Quantity | 18 LEDs per foot (300 per reel) |
||
| Max Run | 16.4 feet @ 24VDC | ||
| Estimated Lifespan | 50,000 hours | ||
| Warranty | 3Year | ||
| Suitable Uses | Dry Location Only |

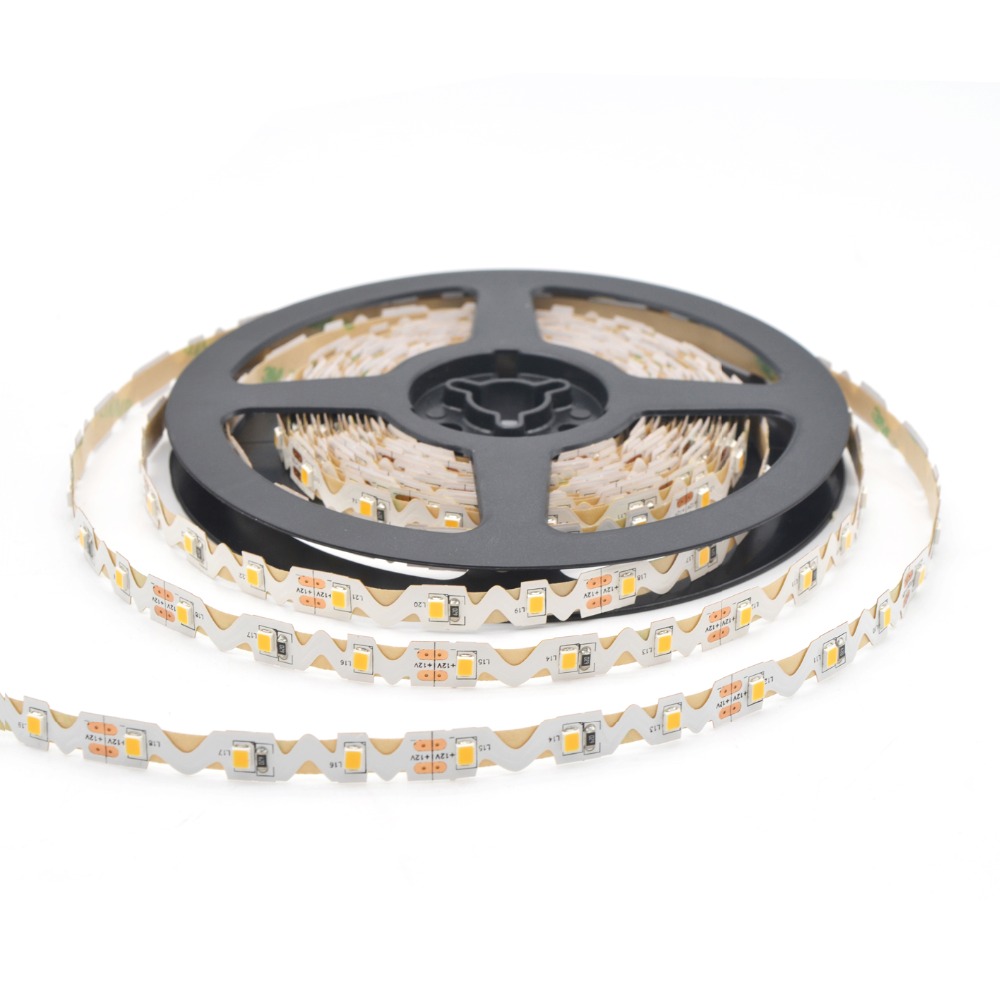

White Zig-Zag 2835 72W LED Strip Light
Ledytok’s White Zig-Zag 2835 72W LED Strip Lights embodies an unconventional zigzag design that enables it to be more flexible than a traditional LED Strip Lights. Unlike the traditional LED Strip Lights, the Zig-Zag LED Strip Lights can bend laterally without the need of using multiple “L” shape connectors, interconnectors and other accessories. The Zig-Zag LED Strip Lights gives you the freedom to freely twist and turn on sharp corners and adhere to almost any object with gradual arcs or exagerated angles.
Furthermore, each zigzag patterns can easily be manipulated for Sign Letter lighting, Archway lighting, Back-lit 3D Letter Lighting, architectural and commercial lighting and much more. It has cut points every 2 inches, great for small and large projects that require custom lenghts.
The White Zig-Zag 2835 72W LED Strip Lights is fully dimmable and is compatible with all of LED Dimmers. Moreover, it is UL Listed ensuring the safety and durability for the lifetime of the strip. Each Zig-Zag LED Strip Lights are 16.4ft in length with a total of 300 LEDs. It operates at 12V DC consuming 4.36W per foot and comes with a 12in lead wire with a female barrel connector for easy set-up and add-on accessories.
The White Zig-Zag 2835 72W LED Strip Lights emits a color temperature of 6000K and has a CRI of 82+, perfect for retail application, Jewelry lighting, museum lighting, task lighting and more.
Product Features:
Fully Dimmable
Color: White 6000K
137 Lumens/Foot
6mm Printed Circuit Board Width
16.4’ Spool / 300 LEDs
18 SMD 2835 LED’s/Foot
Super Small Cut Points Every 2in
Includes Female Barrel Connector for Easy Setup
Strong 3M Double Sided Tape
Perfect for Back-lit 3D Letter Lighting, Archway Lighting and Architectural Lighting
